Slewing Bearing_Crossover rolling type(HJ series)|FengHe Slewing Bearing

No.	Basic type			Configuration			Mounting Size				sturctural size					Gear Date			Ext Gear		Int Gear		Tangential Tooth lood		weight (kg)

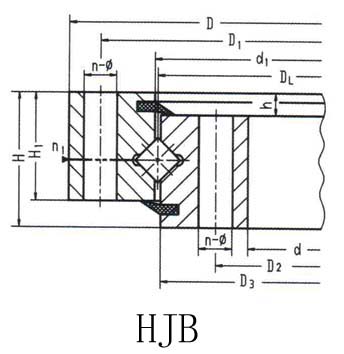

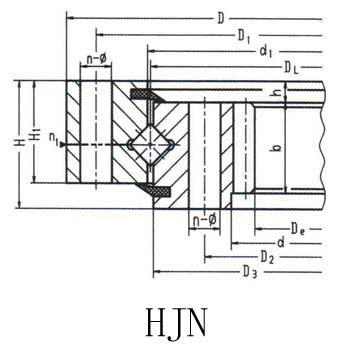

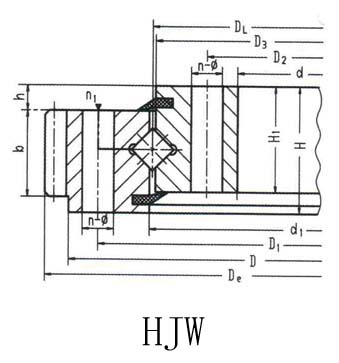

	Toothless DL mm	Ext Toothless D_L mm	Int Toothless D_L mm	D mm	d mm	H mm	D₁ mm	D₂ mm	n	F mm	n1	d₁ mm	D₃ mm	H₁ mm	h	b mm	x	m mm	D_e mm	Z	D_e mm	Z	Nomalizing 10⁴ N	Tempering 10⁴ N
1	HJB.20.625	HJW.20.625	HJN.20.625	725	525	80	685	565	18	18	3	627	623	68	12	60	+1.4	5	751.9	146	498.8	101		5.2	100
		HJW.20.625A	HJN.20.625A														+1.15	6	755.5	122	496.7	84		6.2
2	HJB.20.720	HJW.20.720	HJN.20.720	820	620	80	780	660	18	18	3	722	718	68	12	60	+1.4	6	860.3	139	586.6	99		6.2	120
		HJW.20.720A	HJN.20.720A														+1.0	8	861.1	104	582.3	74		8.3
3	HJB.30.820	HJW.30.820	HJN.30.820	940	705	95	893	749	24	20	4	822	818	83	12	70	+1.4	6	980.6	159	664.5	112		7.2	210
		HJW.30.820A	HJN.30.820A														+1.0	10	986.2	95	658.0	67		12.2
4	HJB.30.880	HJW.30.880	HJN.30.880	1000	760	95	956	800	24	20	4	882	878	83	12	70	+1.15	8	1047.5	127	718.2	91		9.7	230
		HJW.30.880A	HJN.30.880A														+1.0	10	1046.3	101	707.9	72		12.2
5	HJB.30.1020	HJW.30.1020	HJN.30.1020	1170	875	95	1120	930	24	22	4	1022	1018	80	15	70	+1.4	8	1219.3	148	830.1	105		9.7	300
		HJW.30.1020A	HJN.30.1020A														+1.15	10	1219.2	118	827.8	84		12.2
6	HJB.36.1220	HJW.36.1220	HJN.36.1220	1365	1075	120	1310	1130	36	24	6	1222	1218	105	15	90	+1.4	10	1424.9	138	1027.8	104		15.7	450
		HJW.36.1220A	HJN.36.1220A														+1.0	12	1435.9	116	1017.3	86		18.8
7	HJB.36.1250	HJW.36.1250	HJN.36.1250	1400	1090	120	1350	1150	36	26	6	1252	1248	105	15	90	-0.35	10	1443	143	1037	105		15.7	520
		HJW.36.1250A	HJN.36.1250A														+1.0	12	1449.6	117	1036.8	86		18.8
8	HJB 36.1435	HJW.36.1435	HJN.36.1435	1595	1278	120	1535	1335	36	26	6	1437	1433	105	15	90	+1.15	12	1655.5	134	1221.2	103		18.8	610
		HJW.36.1435A	HJN.36.1435A														+1.0	14	1661.2	115	1214.8	83		21.9
9	HJB.45.1540	HJW.45.1540	HJN.45.1540	1720	1360	140	1660	1420	42	26	6	1543	1537	122	18	110	+1.4	12	1780.8	144	1293.1	109		23.0	732
		HJW.45.1540A	HJN.45.1540A														+1.15	14	1791.1	124	1284.8	93		26.8
10	HJB.45.1700	HJW.45.1700	HJN.45.1700	1875	1525	140	1815	1585	42	29	6	1703	1679	122	18	110	+1.15	14	1945.4	135	1452.7	105		26.8	844
		HJW.45.1700A	HJN.45.1700A														+1.15	16	1950.8	118	1452.3	92		30.5

(HJ series)Crossover rolling type
